TSRVImagesScroll

The TSRVImagesScroll component is used to display images in a scrollable row (or column)

Unit SRVImagesScroll;

Syntax

TSRVImagesScroll = class(TSRVCustomControl)

Hierarchy

TObject

TPersistent

TComponent

TControl

TWinControl

TCustomControl

TSRVCustomControl

Properties

This component publishes the following properties inherited from TSRVCustomControl:

•SkinManager;

•SkinSchemeIndex;

•properties inherited from TCustomControl.

New published properties:

Property	Type	Default value	Meaning
CanMoveImages	Boolean	True	Determines whether items can be rearranged using the mouse.
CloseButton	TSRVCloseButton		Properties for closing button in each item.
DoubleBuffered	Boolean	False	Determines whether the control’s image is rendered directly to the window or painted to an in-memory bitmap first.
ImageList	TCustomImageList		Link to an image list to display in items
Indent	Integer	10	Indent before the first item.
ItemHeight	Integer	40	Item height
ItemIndex	Integer		Index of the selected item (in Items)
Items	TSRVImageScrollCollection		Items, a collection of TSRVImageScrollItem
ItemWidth	Integer	80	Item width
Kind	TSRVImageScrollKind	srvbkHorizontal	Determines how images are placed (srvbkHorizontal – in a row, srvbkVertical – in a column).
RestrictMove	Boolean	False	Determines whether the user can move items outside visible area of the control (if CanMoveImages=True)
Spacings	Integer	10	Spacing between items.

To prevent flickering, assign DoubleBuffered=True if the control is placed on the form (not necessary, if inserted in TSRichViewEdit control).

New published properties-colors (for non-skin mode):

Property	Type	Default value	Meaning
ItemBorderStyle	TPenStyle	psSolid	Item border pen style.
ItemBorderColor	TColor	clBtnShadow	Item border color.
ItemColor		clBtnFace	Item color in normal mode.
ItemDownColor		clInactiveCaption	Item color when pressed.
ItemHotColor		clBtnShadow	Item color below the mouse pointer.
ItemSelectedColor		clHighlight	Item color when selected.

New published properties related to scrollbar:

Property	Type	Default value	Meaning
DecButtonWidth	Integer	0	Width of up/left button in a skin mode. 0 for system default.
IncButtonWidth	Integer	0	Width of down/right button in a skin mode. 0 for system default.
LargeChange	Integer	10	Determines how much Position changes when the user clicks the scroll bar on either side of the thumb tab.
ScrollBarHeight	Integer		Height (in horizontal mode) or width (in vertical mode) of the scroll bar.
ScrollerPosition	TSRVScrollerPosition	srvpsEnd	Scroll bar position (srvpsBegin – top/left, srvpsEnd – bottom/right)
ScrollingDelay	Integer	100	Defines a scrolling speed (interval between scrolling events)
SmallChange	Integer	1	Determines how much the scrollbar Position changes when the user clicks the arrow buttons on the scroll bar.

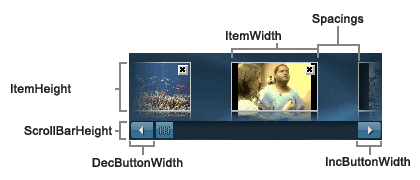

SRVImagesScroll Properties

Published properties related to skins:

Property	Type	Default value	Meaning
SkinManager	TSRVSkinManager		Inherited. A link to a skin manager component.
SkinSchemeIndex	Integer	0	Inherited. Index in SkinManager.CurrentSkin.BoxSchemes, defines the appearance of the whole control.
ScrollBarSkinSchemeIndex	Integer	0	Index in SkinManager.CurrentSkin.HorizontalScrollBarSchemes (or VerticalScrollBarSchemes in a vertical mode), defines the appearance of scrollbar.
ItemSkinSchemeIndex	Integer	0	Index in SkinManager.CurrentSkin.BoxSchemes, defines the appearance of each item.
ButtonSkinSchemeIndex	Integer	0	Index in SkinManager.CurrentSkin.BoxSchemes, defines the appearance of closing buttons.

Events

type

TSRVCloseImageScrollEvent = procedure(Sender: TSRVImagesScroll; ItemIndex : Integer;

var CanClose : Boolean) of object;

TSRVImageScrollMoveEvent = procedure(Sender: TSRVImagesScroll; NewImageIndex, OldImageIndex : Integer) of object;

TSRVDrawImageScrollEvent = procedure(Sender: TSRVImagesScroll; Canvas : TCanvas;

ARect, PaintRect : TRect; State : TSRVDrawStates; var DoDefault : Boolean) of object;

TSRVDrawImageScrollItemEvent = procedure(Sender: TSRVImagesScroll; Canvas : TCanvas;

ARect, PaintRect : TRect; ItemIndex : Integer; State : TSRVDrawStates;

var DoDefault : Boolean) of object;

OnChange: TNotifyEvent occurs after a new item is selected.

OnItemMove: TSRVImageScrollMoveEvent occurs when two items exchange their places as a result of item moving. Similar to OnMoveTab for TSRVTabSet.

OnCloseItem : TSRVCloseImageScrollEvent occurs when the user attempts to close an item.

OnDrawBorder, OnDrawBackground, OnDrawItem, OnDrawCloseButton: TSRVDrawImageScrollEvent allow custom drawing for the corresponding objects. Canvas – a canvas where to draw. ARect – a rectangle defining the position of the object to draw. APaintRect – a rectangle that needs to be redrawn; you can use this parameter to optimize drawing. State – a set describing the current object state. Set DoDefault to False to prevent the default drawing of this object.

Painting

Caption is aligned according to Alignment. CaptionOffset shifts the text (to the right, if Alignment=taLeftJustify, or to the left, if Alignment=taRightJustify). Caption is placed vertically at the top.

Background is drawn using Color property.

Border is drawn using BorderColor, BorderWidth and CornersOffset properties (even in a skin mode).

If SkinManager is assigned, the control is drawn using SkinManager.CurrentSkin.BoxSchemes[SkinSchemeIndex].

Example:

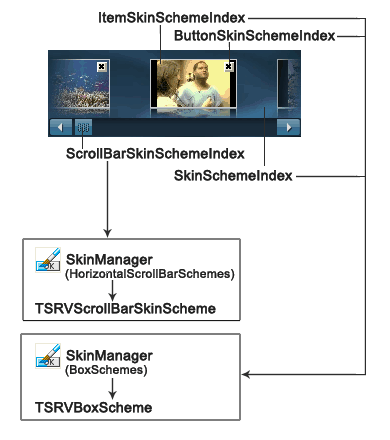

SRVImagesScroll Scheme
