Resources

Resources include additional components, parsers for popular shareware/freeware spellcheckers, additional item types, tools and examples.

Actions

RichViewActions v3.4.6

RichViewActions Page

Set of actions for creating user interfaces for RichViewEdit. Includes predefined dialogs and several components. Supports Windows XP/Vista themes.

License: Free addon for RichView
RichView: for v13.3+
Delphi: 4 and newer; C++Builder: 6 and newer
Visit the RichViewActions Page for additional information
Source code and demo: included in the installation of TRichView and ScaleRichView
Compiled demo, simple (3.01 MB)
Compiled demo, with ScaleRichView (2.44 MB)
Compiled demo, with Addict4 spell checker (3.50 MB)
Last updated: December 13, 2011

Components

TRichView XML v1.10 by J. Banzet
RichViewXML Page	Component for saving, loading and inserting XML files in RichView. License: Free addon for RichView RichView: for v13.3+ Visit RichViewXML Page for additional information. Source code, documentation, compiled documentation viewer (846 KB) Source code, documentation (134 KB) RvXml is supported by RichViewActions. In the compiled ActionTest demo, RvXml is used to open, save and insert documents in XML format Last updated: September 22, 2011
RvHtmlImporter v0.0040
	Component for importing HTML files in RichView. License: Free (open source) addon for RichView, with ZLib type of license RichView: for v13.3+ RvHtml is supported by RichViewActions. In the compiled ActionTest demo, RvHtml is used in menu commands Insert\|File and Edit\|Paste Special Download Source code and demo (85 KB) Created by: Carlo Kok, Harry Mulder, Rudy Ramsey and others Last updated: September 22, 2011

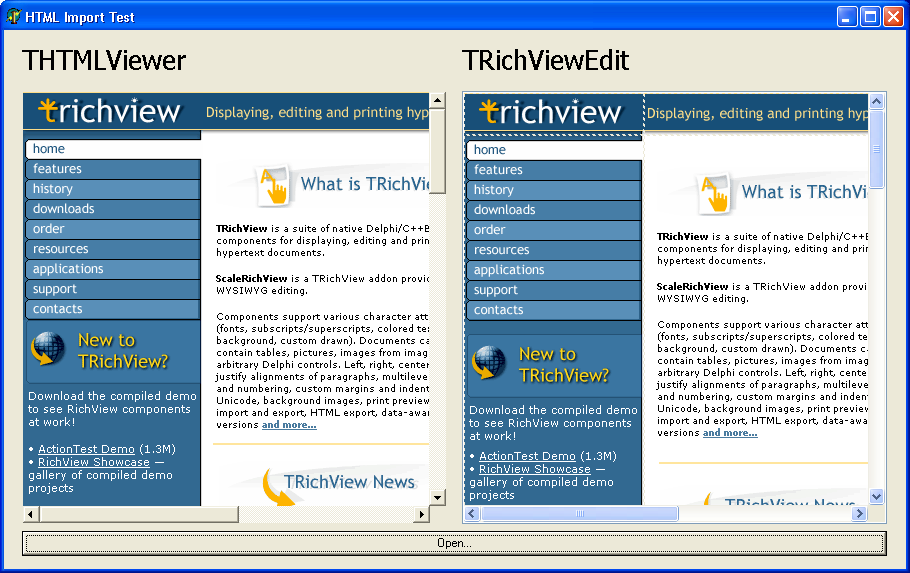

RvHtmlViewImporter v1.9
	Component for importing HTML files in TRichView from THTMLViewer. License: Free addon for RichView and HTMLViewer RichView: for v13.3+ HTMLViewer: for v9.45+ RvHtmlViewImporter is supported by RichViewActions. It is used in menu commands File\|Open and Insert\|File. Download Source code and demo (64 KB) THTMLViewer Homepage: code.google.com/p/thtmlviewer/ Last updated: September 14, 2011

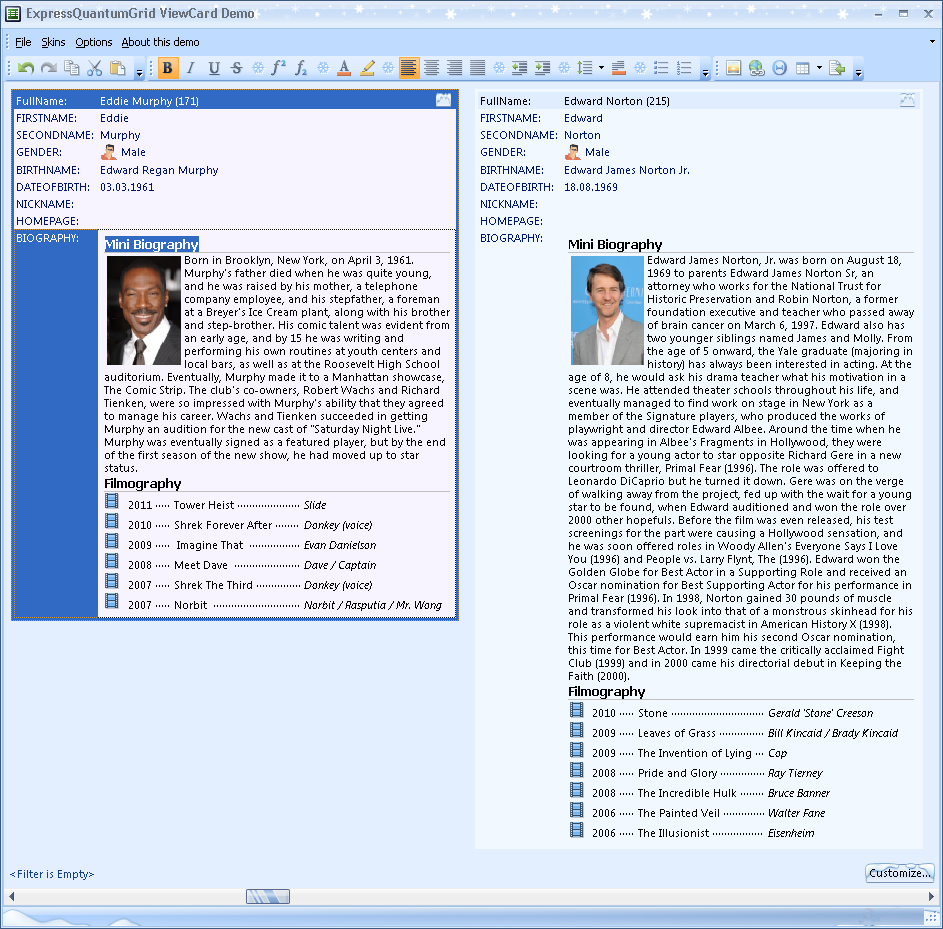

Editors v1.4 for Developer Express VCL Packs
TRichView ExpressEditors Page	The package includes rich text editors, working both as standalone editors and as inplace editors in QuantumGrid. The editors support ExpressSkins™ and ExpressSpellChecker™. Visit TRichView ExpressEditors Page for additional information. Visit Developer Express home page. License: Free, but it requires licensed TRichView and Developer Express components RichView: for v13.6+ Last updated: December 10, 2011 Download Source code (36 KB)

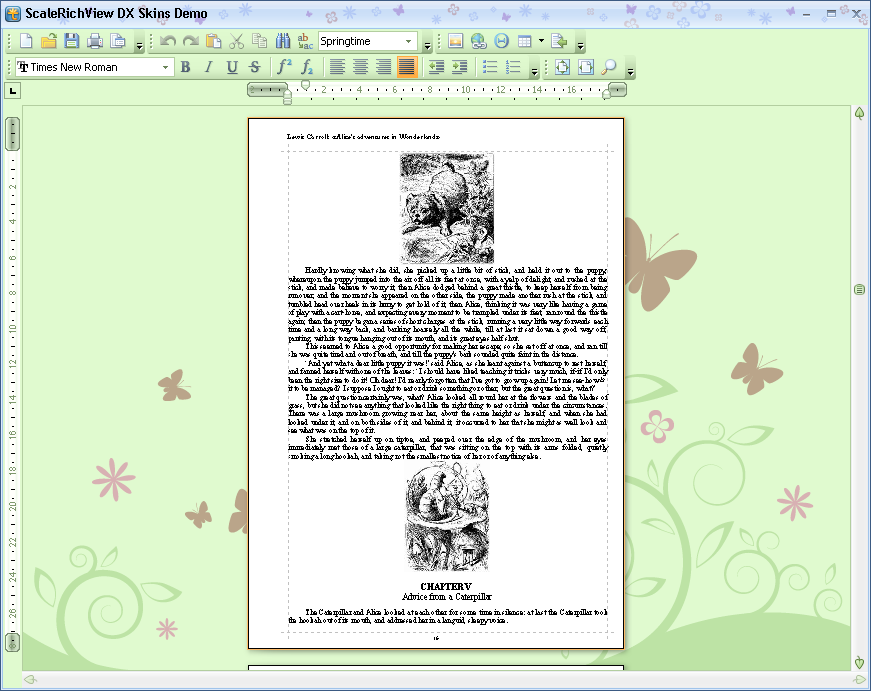

ScaleRichView+ExpressSkins: TSRVDxSkinAdapter v1.0.1 by Marek Mittmann
ScaleRichView+ExpressSkins Page	The package includes TSRVDxSkinAdapter component allowing to use ExpressSkins™ in ScaleRichView editor. Visit ScaleRichView+ExpressSkins Page for additional information. Visit Developer Express home page. License: Free, but it requires licensed ScaleRichView and Developer Express components RichView: for v13.6+ Last updated: December 28, 2011 Download Source code (8 KB)

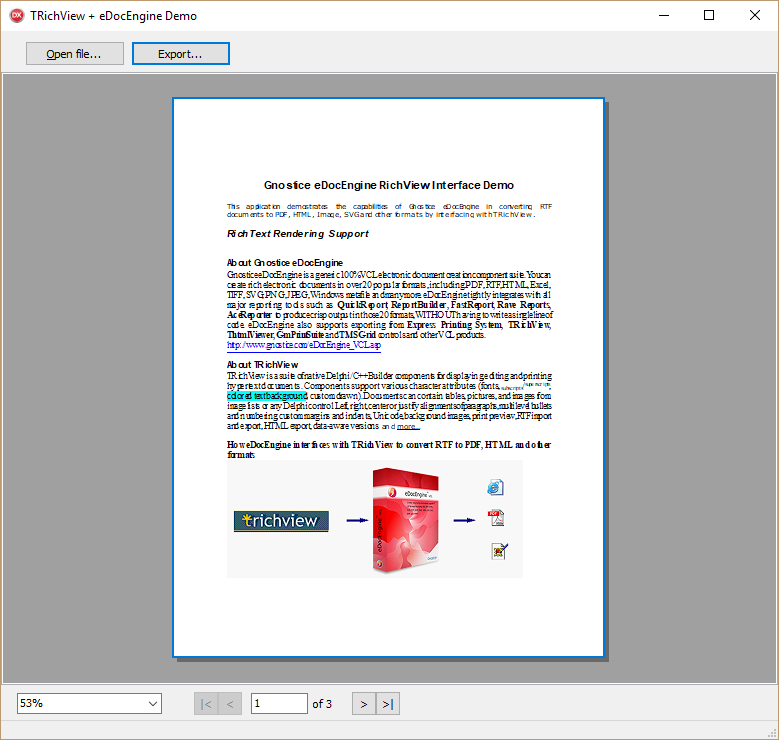

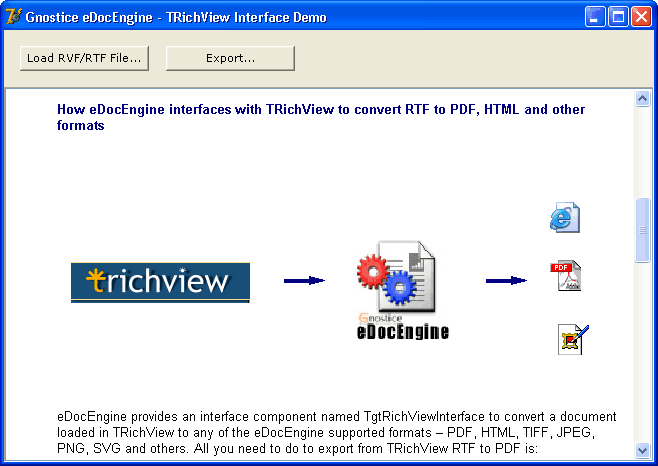

eDocEngine v3 by Gnostice
	Gnostice eDocEngine converts TRichView documents to PDF, XHTML, Excel, Quattro Pro, Lotus 1-2-3, DIF, SYLK, SVG (XML based vector graphics), TIFF, PNG, JPEG, GIF, BMP, EMF, WMF, RTF, HTML, and other formats. In eDocEngine v3, PDF conversion is now fully Unicode enabled and with more compact subset font embedding. License: Requires licensed RichView and eDocEngine Last updated: September 1, 2010 eDocEngine home page Download Compiled demo eDocEngine working with TRichView (1.98 MB) Download Source code of this demo (584 KB) Additional info: registered TRichView users will receive a 15% discount when ordering Gnostice eDocEngine

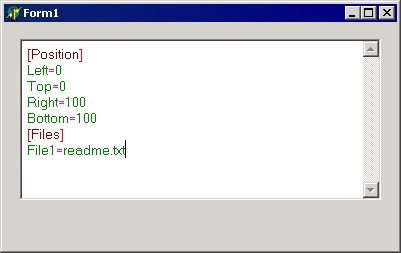

TSyntaxRichViewEdit 1.0 by Igor Afanasyev
	RichViewEdit component with basic syntax highlighting abilities License: Free addon for RichView RichView: for v1.6.10+ Source code, demo (5 KB) Last updated: February 2, 2002 Please send all questions and comments related to this component to Igor Afanasyev.
llPDFLib by llionsoft

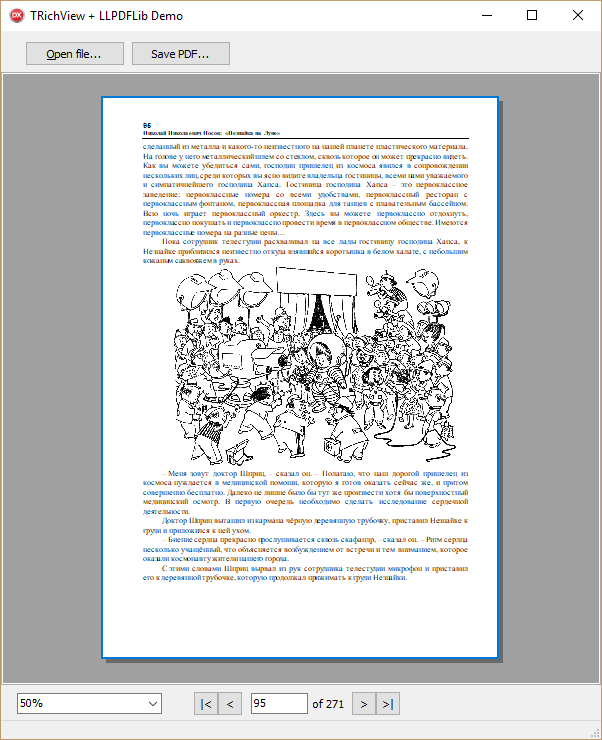

	Powerful shareware component for PDF generation. LLPDFLib can be used to export RichView documents in PDF format. llPDFLib Homepage: www.llion.net License: Shareware. Registered users of RichView Package get 10% discount when registering llPDFLib TRichView: for v1.8+ LLPDFLib: for v3, 4 Demo converting RTF file to PDF, uses llPDFLib v4 (6 KB) This demo loads RTF file in RichView (TRVReportHelper) and saves it as PDF using llPDFLib Demo converting RTF file to PDF, uses llPDFLib v3 (5 KB) Compiled demo (with llPDFLib v3) (500 KB) Last updated: March 14, 2009 Additional info and demo

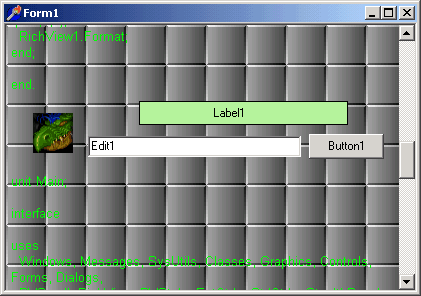

TStealthPanel v1.0
	Description: panel which can hide itself and show only inserted controls; designed for inserting group of controls into RichView with bitmapped background. Call HideItself method to hide panel, and ShowItself to make it visible. Demo loads pas-file into RichView, then inserts stealth panel, then loads pas-file again. Limitations: panel hides only areas which are not overlapped by any inserted component (can't handle transparent areas in inserted components) License: Free RichView version: for any version (demo is for shareware version) stealthpanel.zip (8 KB) Last updated: August 17, 2004

Spell Checkers

Note: these parsers require third-party components (shareware or freeware).

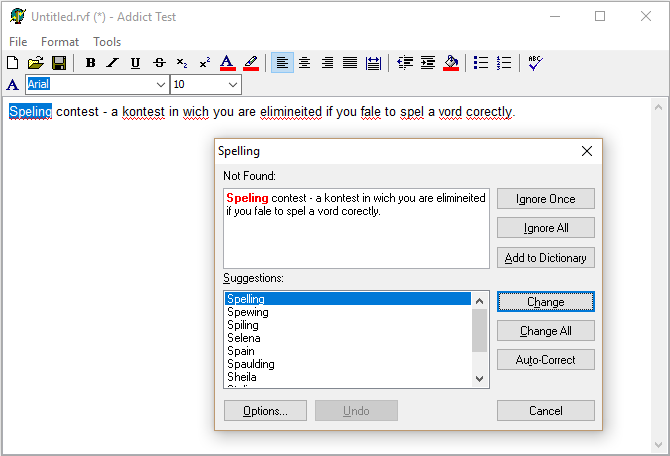

Parser v2.2 for Addict Spell Check and Thesaurus 3 and 4

Spell Checker Homepage: www.addictive-software.com

RichView: for v13.0+

Addict: for v3.2.2+

Parser is implemented as two components: TRVAddictSpell3 and TRVThesaurus3.

Download:parser and simple demo (97 KB)

Compiled ActionTest demo (see RichViewActions above) with Addict4 spell checker (3.50 MB; includes dictionaries)

Last updated: December 13, 2011

Additional info: registered TRichView users will receive a 10% discount when ordering Addict Professional + PlusPack.

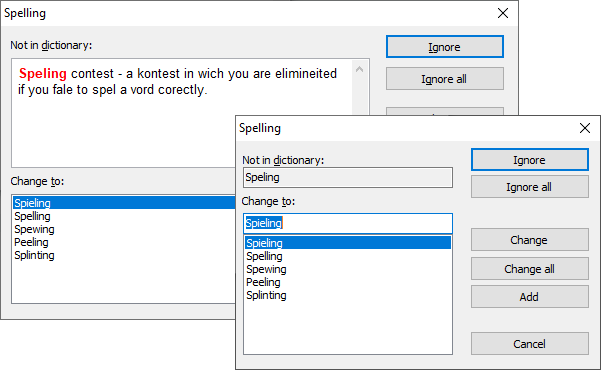

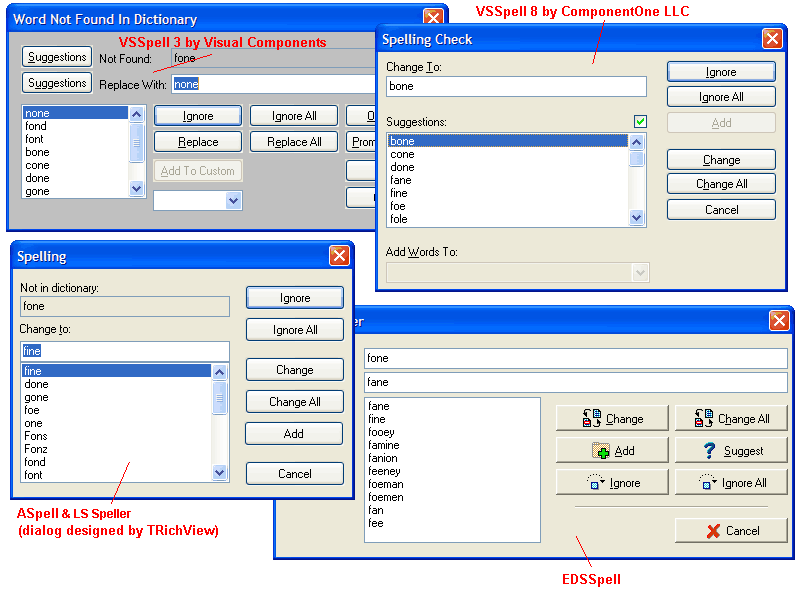

Parsers for several spell-checkers v1.16

Spellcheckers:

HunSpell by László Németh (DLL, open source)

ExpressSpellChecker by Developer Express Inc. (commercial VCL component)

EDSSpell 7 by OneDomain (shareware VCL component)

ASpell by Kevin Atkinson (DLL, license: LGPL)

VSSpell 8.0 by ComponentOne LLC (shareware ActiveX, discontinued)

VSSpell 3.0 by Visual Components, Inc (shipped with some versions of Delphi, ActiveX)

LS Speller by Luzius Schneider (based on former work of Alexander Obukhov) (freeware, uses ISpell and MS Office spell checkers (via CSAPI)).

Polar SpellChecker Component by Polar (shareware ActiveX)

RichView: for v13.0+

Download (107 KB)
Last updated: December 22, 2011

Reporting Tools

Note: the files below allow RichView to work with third-party reporting tools.
RichView documents can be added to reports and other objects.
Third-party reporting tools may be shareware or commercial.

RichView wrapper for ReportBuilder

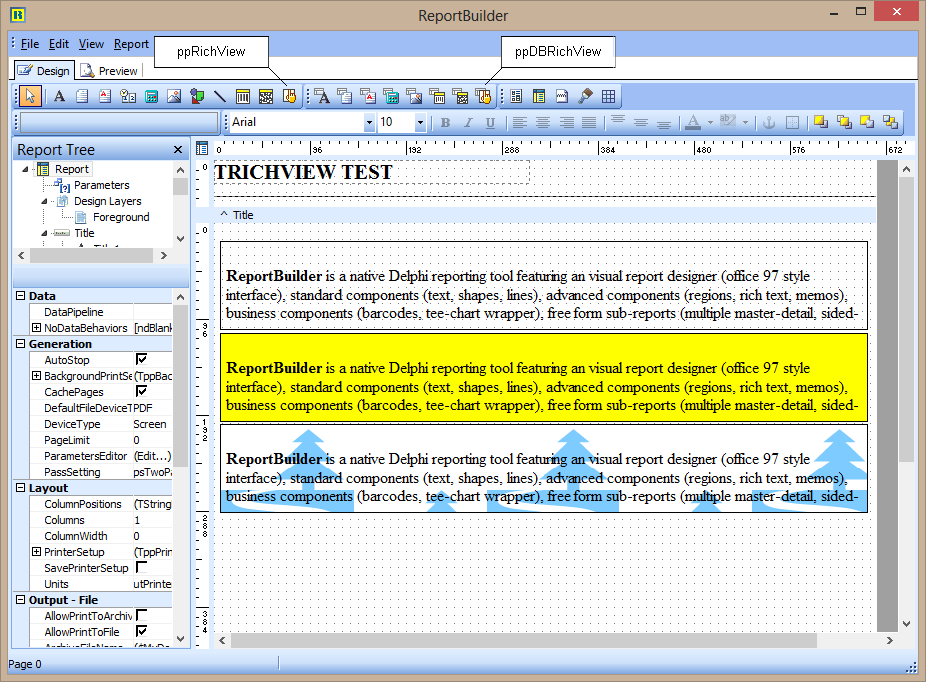

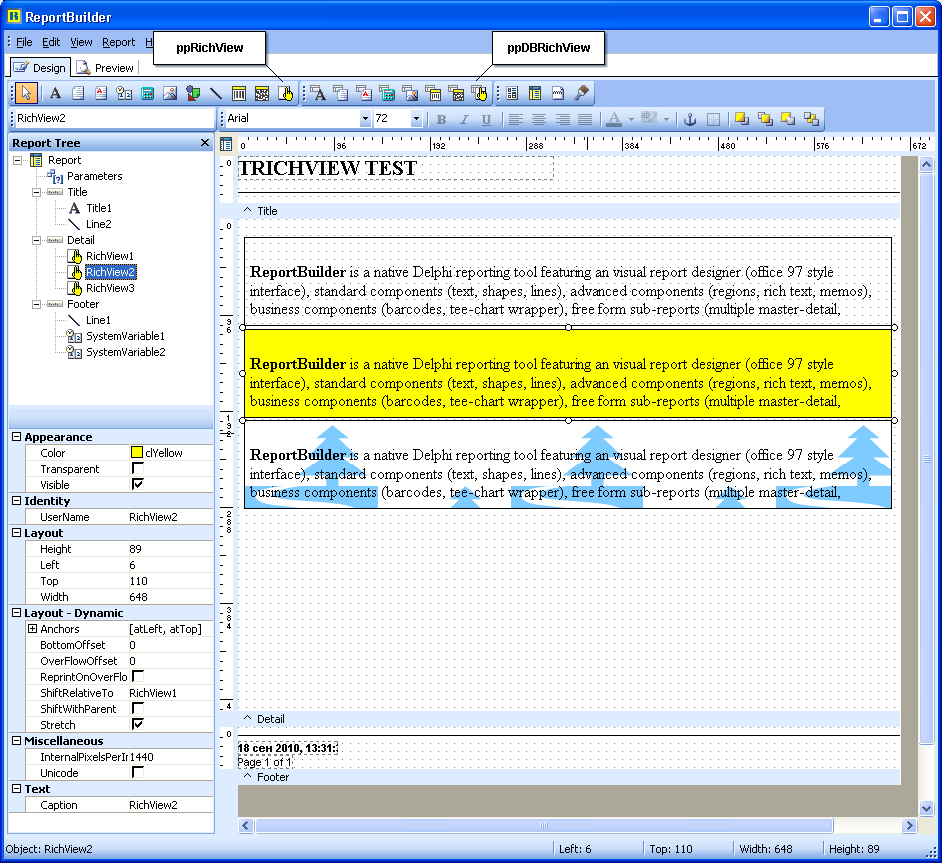

TRichView in ReportBuilder Page	ReportBuilder Homepage: www.digital-metaphors.com RichView: for v13.5+ ReportBuilder: for v7–14. Supported third-party addons: Extra Devices, TExportDevices Last updated: December 15, 2011 Wrapper implements two objects: TppRichView and TppDBRichView. More information, download source code and demo

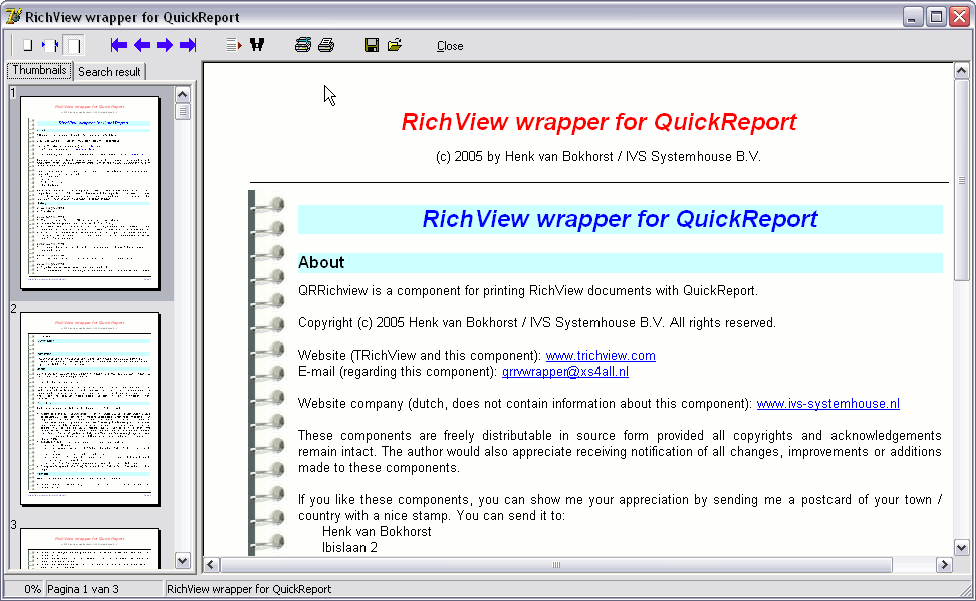

RichView wrapper (RVQRControls) v3.0 for QuickReport, by Henk van Bokhorst
	QuickReport Homepage: www.qusoft.com RichView: v1.9+ QuickReport: v3.6 Professional+ Last updated: May 27, 2011 Download source code and demo (59 KB) Download source code and compiled demo (3.40 MB)

Other Resources

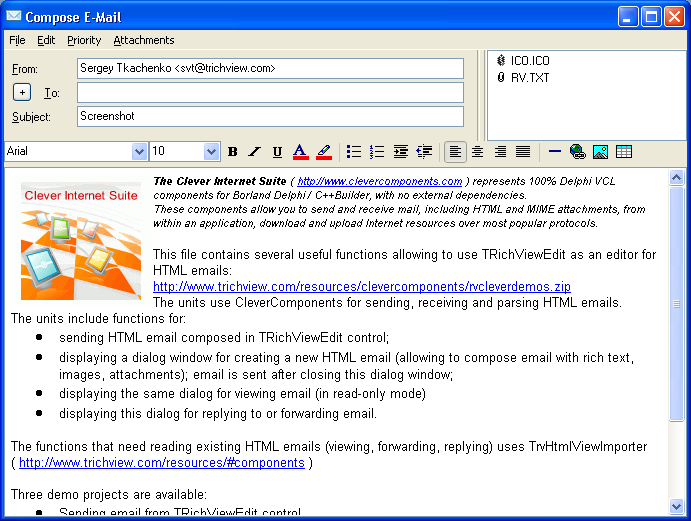

Functions for editing and sending HTML emails with The Clever Internet Suite
	The Clever Internet Suite Homepage: www.clevercomponents.com Last updated: October 18, 2011 The units include functions for: sending email composed in TRichViewEdit control; displaying a dialog window for creating a new email and for viewing, replying to, forwarding emails. Demo projects are available, including a full functional HTML email client. The functions using a dialog window require RichViewActions. The functions that include HTML reading require TrvHtmlViewImporter. Download the source code and demos (44 KB) Download the compiled demo (1.84 MB)

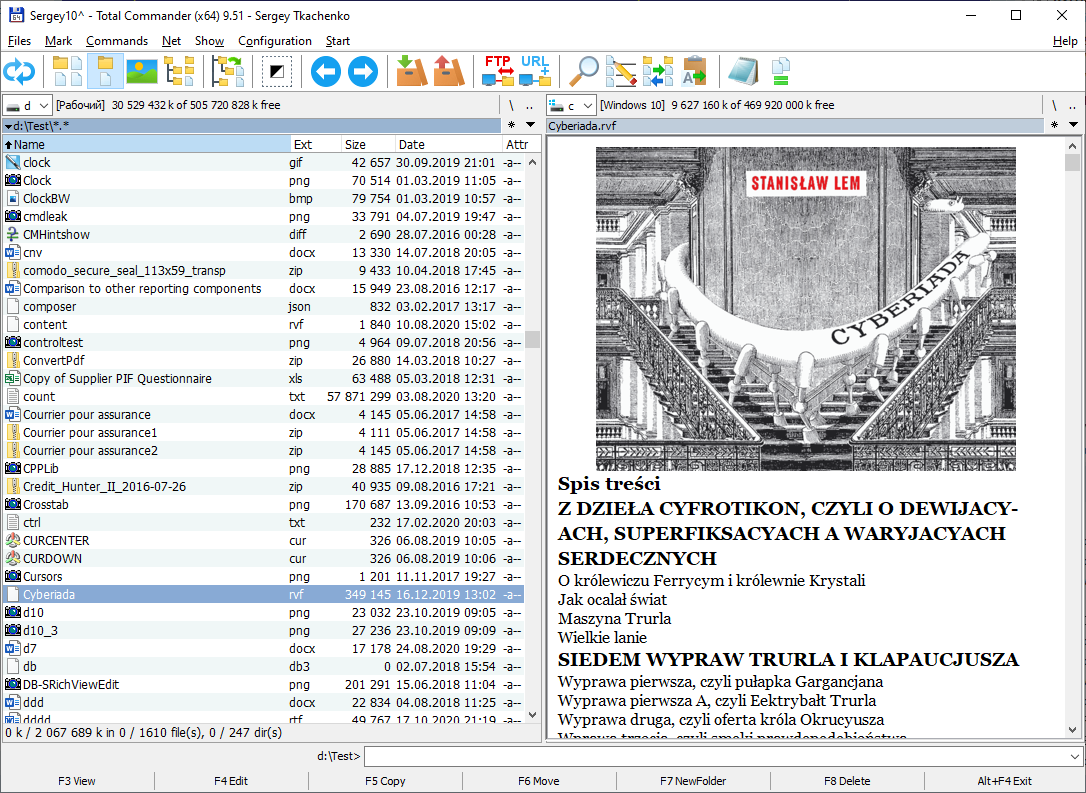

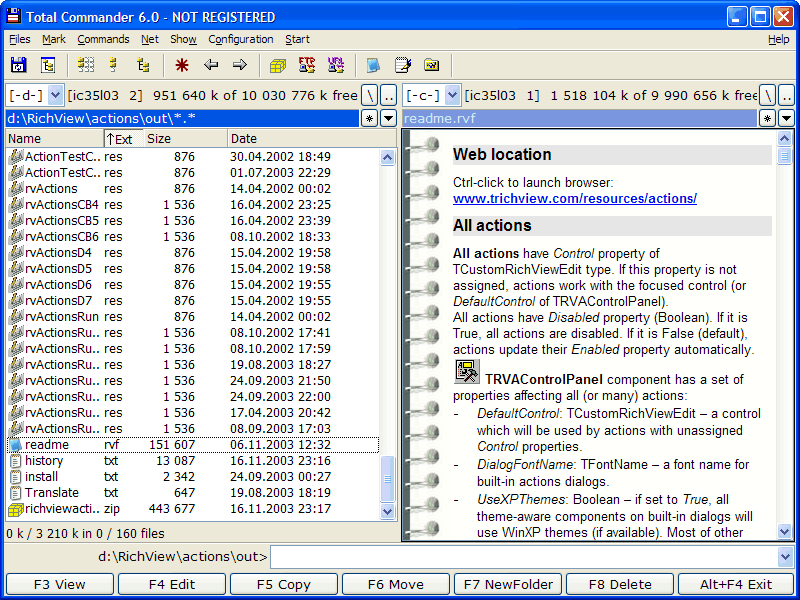

RVLister v1.1 — plugin for Total Commander (former Windows Commander)
	This is a plugin for the popular shareware file manager Total Commander 6.0+ (formerly Windows Commander). It allows you to view RVF files — files in format of TRichView editor. This plugin supports: printing; text searching; text wrapping on/off (wrap window/wrap at the widest object or table); copy and select-all commands; positioning in percents. License: Free Last updated: February 19, 2008 RichView: v10.0+ Download: plugin (with source code) (705 KB)

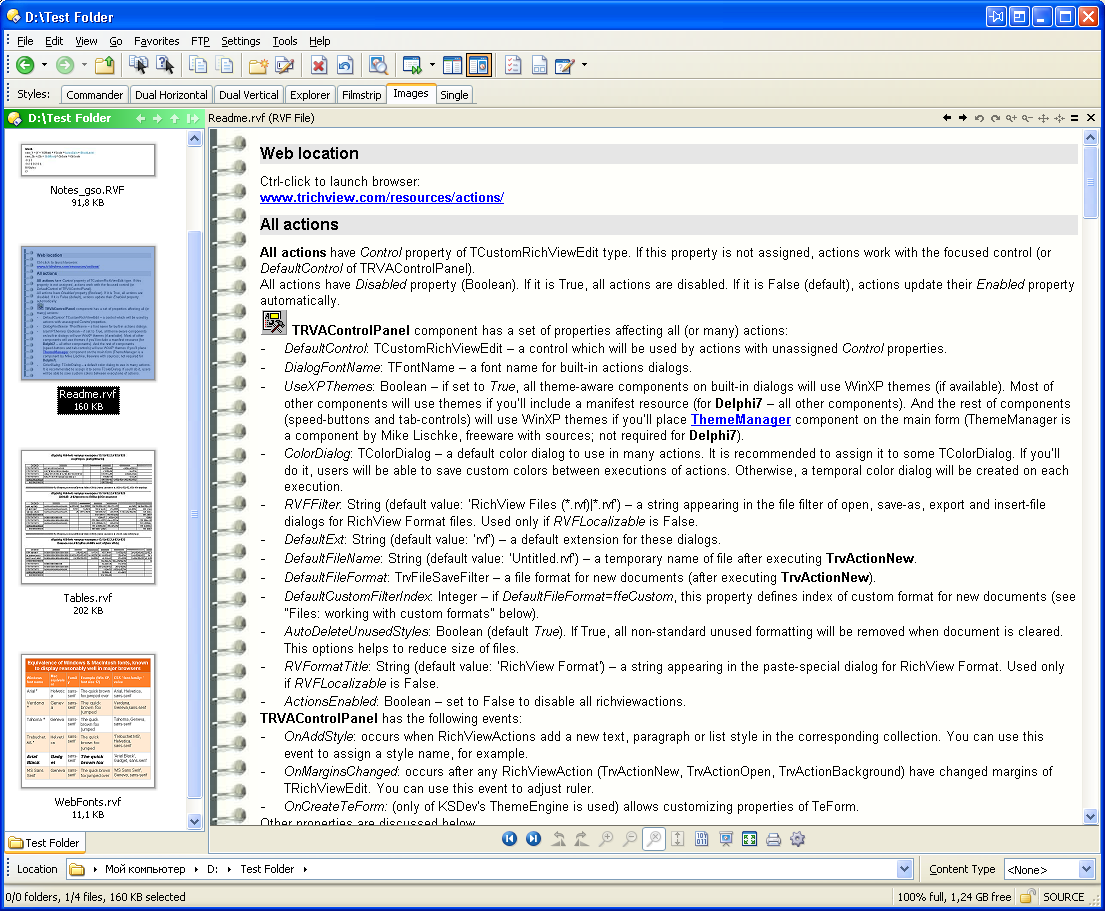

Viewer plugin v1.0.0.1 for Directory Opus (DOpus)
	This is a plugin for the file manager Directory Opus 9.0+. It allows you to view RVF files — files in format of TRichView editor. This plugin supports: file thumbnails; printing; copy and select-all commands; full-screen mode. License: Free Last updated: May 30, 2008 RichView: v10.0+ Download: plugin (with source code) (684 KB)

Plug-ins

BlendBitmap (TRVBlendBitmapItemInfo, TRVHotBlendBitmapItemInfo)
	Description: semi-transparent images in RichView, with specific degrees of transparency. Transparency requires a color display mode of more than 256 colors. TRVHotBlendBitmapItemInfo is also a hypertext link (degree of transparency can be changed when mouse is above the link) Demo included. License: Free Download: compiled demo-project (316 KB). Source code of this plugin is available at download page (included in the main set of demos).

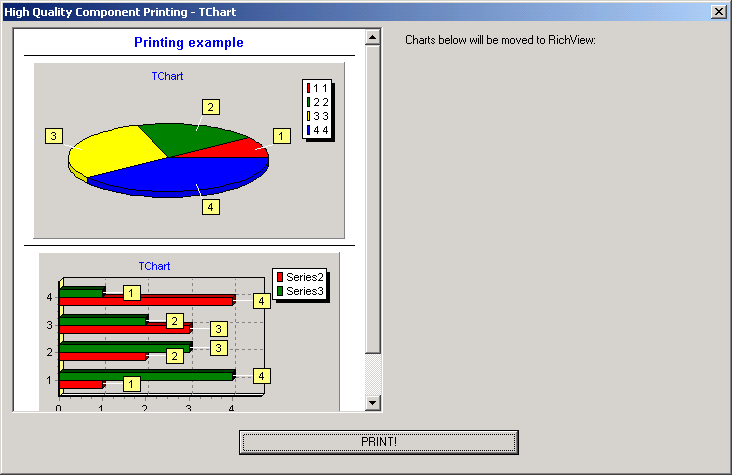

ChartItem (TRVChartItemInfo)
	Description: by default, RichView prints inserted controls using a tempory bitmap provided by the programmer during the OnPrintComponent event. This technique cannot ensure high quality image since this bitmap has screen resolution, which is usually much lower than resolution of printer. This plugin does high quality printing of TChart components inserted in a RichView editor or viewer. A good example of how to implement printing for custom types of controls. Demo included. License: Free Requirements: TChart available on download page (included in the main set of demos).
